P-4534DN

Clever, versatile and discrete - this is how the P-4532DN presents itself. With its 45 pages/min this printer is not only productive, but easy to use and operate as well. Of course, it is always at the ready be used in the network - but you can also send print jobs to it from your smartphone, tablet or by Wi-Fi Direct. Still, it keeps your confidential documents absolutely safe. Freely configurable optional cassettes in combination with matching cabinets turn this printer into an all-purpose team member of any department.

Find a Retailer

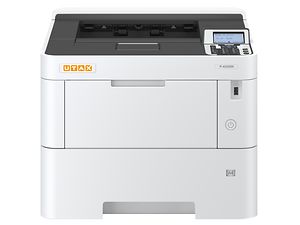

P-4534DN Image

General

  • TypeDesktop
  • Functionprint
  • Print technologyLaser b/w
  • Print formatmax A4
  • Print speed (A4, Simplex) B/W45 b/w-pages/min.
  • Print speed (A4, Duplex) B/W22.5 b/w-pages/min.
  • 1st page (printing, b/w)5.3 seconds
  • Warm-up time16 seconds
  • Printing resolution (max)1,200 x 1,200 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 500 sheet
  • Paper feed (1st cassette types)A5R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)banner: 915 mm length
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)120 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)120 g/m²
  • Paper weights (Banner min)60 g/m²
  • Paper weights (Banner max)220 g/m²
  • Paper output250 sheet A4
  • System memory (RAM)0.5 GB
  • System memory (RAM max)2.5 GB
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (2), SD-Card Slot
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 8, Windows 8.1, Windows 10, Server 2012, Server 2012 R2, Server 2016, Server 2019, Linux, Mac ex OS 10.9
  • EmulationsPCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, Line Printer, IBM Proprinter, Epson LQ-850, XPS, Open XPS, PDF 1.7
  • FunctionsUSB direct printing, PDF direct printing, printing of e-mails, private printing, quiet mode (half speed mode), barcode printing, banner print (max 915 mm) from multi-bypass, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, Wi-Fi Direct®

Dimensions / Weight

  • Dimensions (height)308 mm
  • Dimensions (width)390 mm
  • Dimensions (depth)416 mm
  • Weight14.6 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50/60 Hz
  • Power consumption (max)1234 W
  • Power consumption (busy)606 W
  • Power consumption (standby)8.4 W
  • Power consumption (sleep)0.5 W
  • Power consumption (TEC)0.59 kwh/week
  • Noise level (busy, b/w)50 dB(A)
  • Noise level (standby)30 dB(A)
  • SafetyGS/TÜV, CE

Options

  • Paper feedmax 4 x PF-3110 (500 sheet universal cassettes [A5R-A4, 60-120 g/m²]), max 1 x PF-3100 (2,000 sheet large capacity tray [A5R-A4, 60-220g/m²]), PB-325 (Attachment Kit is required for PF-3100)
  • Other optionsData security kit (E), Card authentication kit (B), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, cabinet no. 79 (high), cabinet no. 80 (low), caster kit CA-3100, HD-18 SSD (256 GB), HD-17 SSD (64 GB), HD-19 SSD (512 GB), IB-37 WLAN card (IEEE802.11a/b/g/n/ac), IB-38 W-LAN card**** (IEEE802.11 b/g/n Wi-Fi direct)

Notes on technical data

  1. depending on the operating status↩
  2. depending on the operating status↩
  3. optional↩
  4. DIN/ISO 7779/9296↩
  5. DIN/ISO 7779/9296↩
  6. When using HD-6 or HD-7, the Data Security Kit can be activated free of charge.↩
