P-4539i MFP

Security, efficiency and productivity combined in a compact format and coupled with intuitive operation are the characteristics that set the P-4539i MFP apart, next to its high print speed of 45 A4 pages/minute and its integrated fax card. Mobile printing and scanning via the Mobile Print App as well as printing via Apple AirPrint or Wi-Fi quickly turn this allrounder into an indispensible assistant in your office.

Find a Retailer

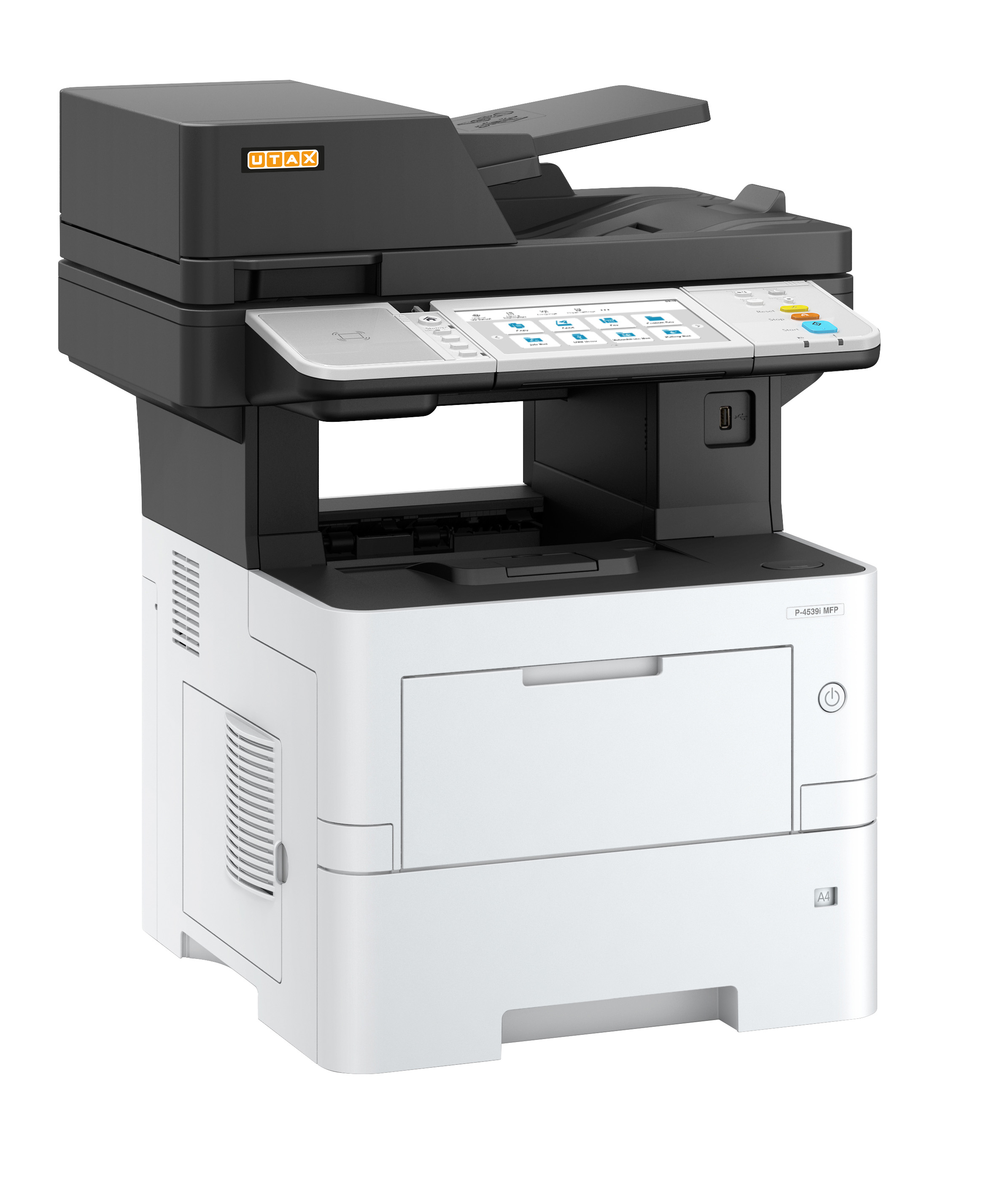

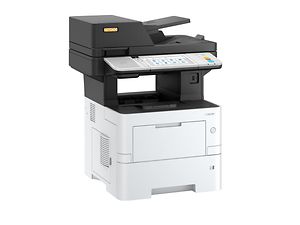

P-4539i MFP Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, fax
  • Print technologyLaser b/w
  • Original formatmax A4 from platen glass
  • Original feeder75 sheet document processor with automatic reverse function, A6R-A4, 50-120 g/m² (standard)
  • Print speed (A4, Simplex) B/W45 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W45 b/w-pages/min.
  • Print speed (A4, Duplex) B/W22.5 b/w-pages/min.
  • Copy speed (A4, Duplex) B/W22.5 b/w-pages/min.
  • 1st page (printing, b/w)5.3 seconds
  • 1st page (copying, b/w)6 seconds
  • Warm-up time23 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 500 sheet
  • Paper feed (1st cassette types)A5R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)120 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)120 g/m²
  • Paper output250 sheet A4 (face-down)
  • System memory (RAM)1.5 GB
  • System memory (RAM max)3.5 GB
  • Continuous copying (min)1
  • Continuous copying (max)999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • FunctionsColour touch screen (7 inch), duplex, job reservation, ID card copy, Scan once - Copy Many, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), 100 management codes, secure boot and run time integrity check

Dimensions / Weight

  • Dimensions (height)575 mm
  • Dimensions (width)475 mm
  • Dimensions (depth)476 mm
  • Weight22.5 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50/60 Hz
  • Power consumption (max)1270 W
  • Power consumption (busy)599 W
  • Power consumption (standby)57 W
  • Power consumption (sleep)0.5 W
  • Power consumption (TEC)0.62 kwh/week
  • Noise level (busy, b/w)52 dB(A)
  • Noise level (standby)22 dB(A)
  • SafetyCE, GS/TÜV

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-A4
  • Print resolution (max)1,200 x 1,200 dpi
  • ProcessorARM Cortex-A53 Dual Core, 1,4 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 8, Windows 8.1, Windows 10, Server 2012, Server 2012 R2, Server 2016, Server 2019, Linux, Server 2022, Chrome OS, Mac ab OS 10.14
  • EmulationsPCL6 (PCL 5e/c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, Line Printer, IBM Proprinter, Epson LQ-850, XPS, Open XPS, PDF 1.7
  • FunctionsUSB direct printing, printing of e-mails, PDF direct printing, private printing, barcode printing, WSD-/Internet printing, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, Wi-Fi, Apple AirPrint, Mobile Print (Android/iOS), Microsoft Universal Print

Scanning system

  • Scan typeCCD colour and b/w
  • Scan formatmax A4
  • Scan speed (Feeder 1, simplex, colour)40 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)60 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)17 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)26 DIN-A4-image pages/min. in 300 dpi
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modePhoto, text, photo/text, optimised for OCR
  • File typesTIFF, JPEG, PDF, PDF/A-1a, PDF/A, PDF/A-1b, PDF/A-2a, PDF/A-2b, PDF/A-2u, high compression PDF, encrypted PDF, XPS, OpenXPS, MS Office/text-searchable PDF
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows 8, Windows 8.1, Windows 10, Server 2012, Server 2016, Server 2012 R2
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP, Multi Crop Belegscan

Fax system

  • TypeIntegrated within the system
  • CompatibilitySuper G3
  • Original formatmax A4
  • Modem speed33.6 kbps
  • Transmission speed3 seconds or less using JBIG
  • Compression methodJBIG, MMR, MR, MH
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi)
  • Fax memory8 MB
  • Fax memory (image)3.5 MB
  • Abbreviated dial200 numbers
  • One touch dial100 numbers
  • Group dial50 numbers
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Server 2008 R2, Server 2016, Server 2012 R2
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission

Options

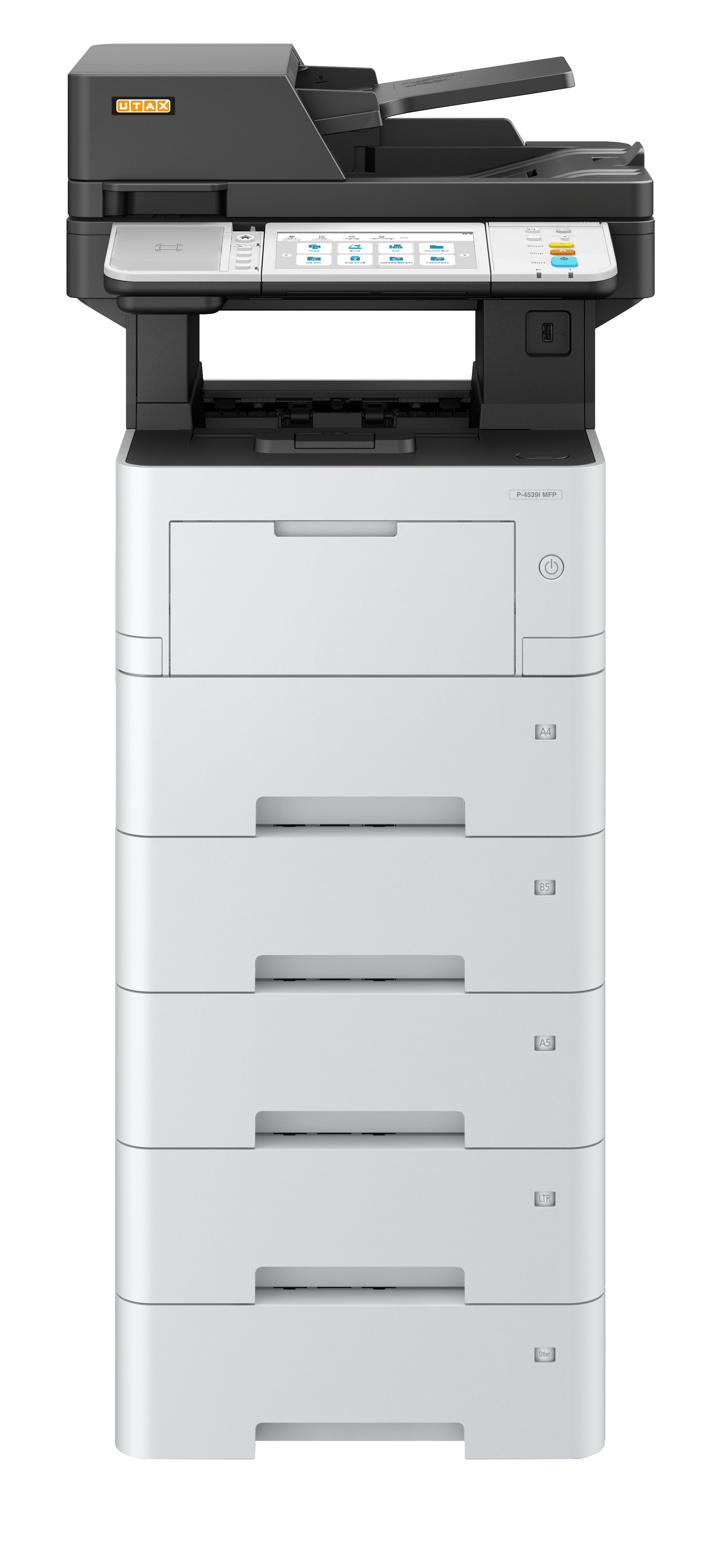

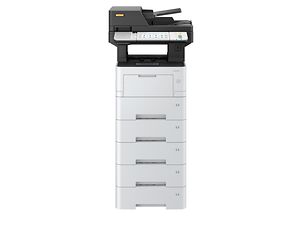

  • Paper feedmax 4 x PF-3110 (500 sheet universal cassettes (A5R-A4, 60-120 g/m²])
  • Other optionsScan extension kit (A), Card authentication kit (B), Card reader holder (10), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, cabinet no. 79 (high), cabinet no. 80 (low), HD-18 SSD (256 GB), IB-37 WLAN card (IEEE802.11a/b/g/n/ac), HD-17 SSD (64 GB), caster kit CA-3100, IB-51 WLAN card, IB-38 W-LAN card**** (IEEE802.11 b/g/n Wi-Fi direct), HD-19 SSD (512 GB), UG-50 Trusted Platform Modul

Notes on technical data

  1. DIN/ISO 7779/9296↩
  2. optional↩
  3. optional↩
  4. optional↩
  5. additional memory required↩
