P-C3563i MFP

Unlimited productivity in printing, scanning and copying - With a print speed of 35 A4 pages per minute and a scan speed of up to 100 images per minute, the P-C3563i MFP offers the optimal parameters to simplify your daily business in the office. Equipped with a dual scanner, it can scan double-sided documents in a single pass, saving time and protecting the originals. The system has also been further developed in terms of media handling, among other things, so that grammages of up to 220 g/m² or even small-format items such as recipes can be processed easily. Furthermore, the topic of security takes on a high priority with additional functions such as multiple hard disk overwriting and automatic firmware checks.

Find a Retailer

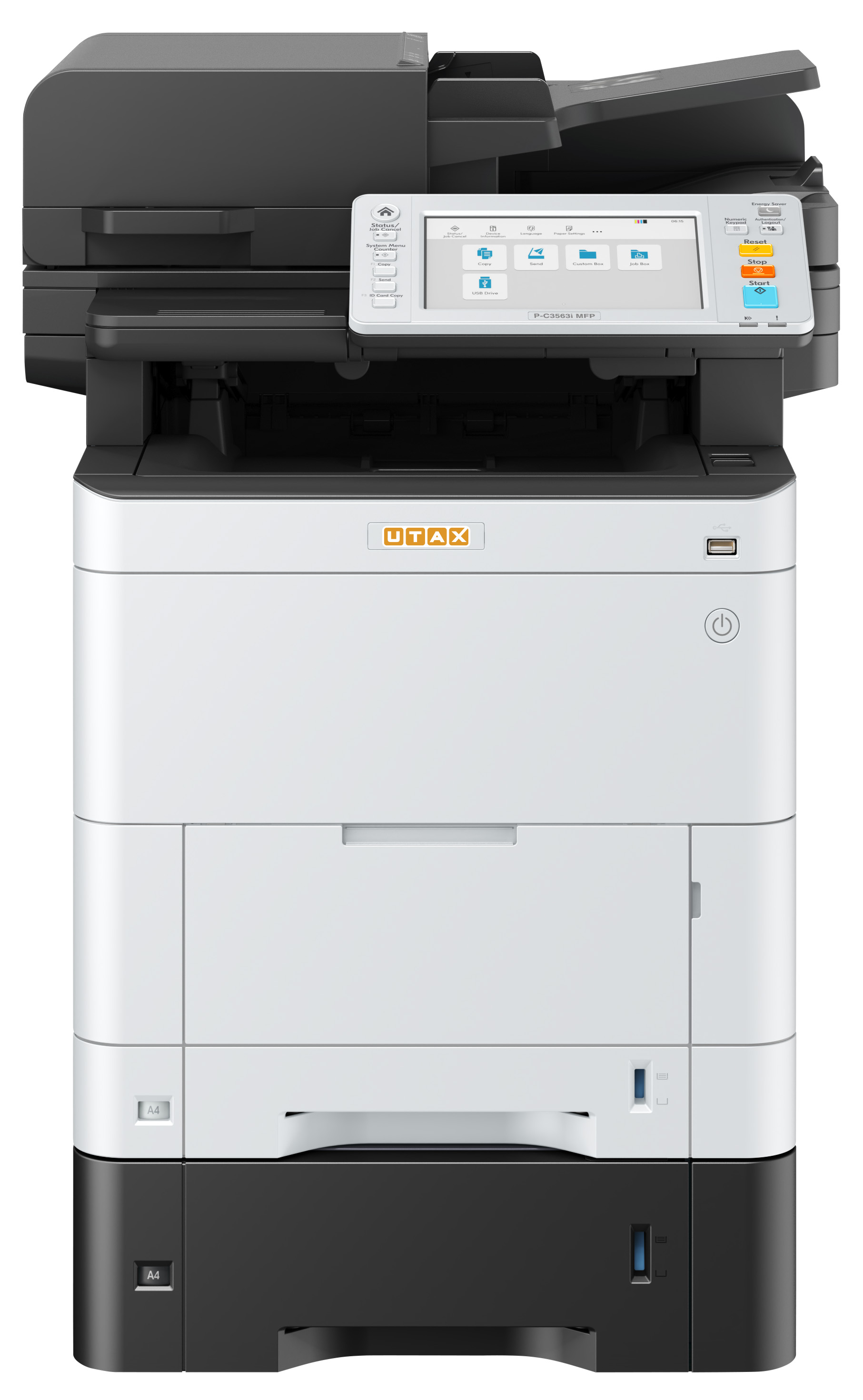

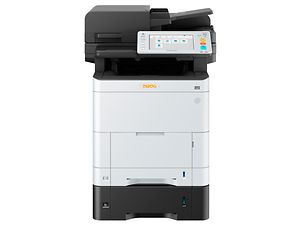

P-C3563i MFP Image

General

  • TypeDesktop
  • FunctionCopy, print, scan
  • Print technologyLaser colour and b/w
  • Original formatmax A4 from platen glass
  • Original feeder100 sheet A4 (dual-scan document processor), A6R-A4, 50-120 g/m² (simplex/duplex)
  • Print speed (A4, Simplex) B/W35 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W35 b/w-pages/min.
  • Print speed (A4, Duplex) B/W17.5 b/w-pages/min.
  • Copy speed (A4, Duplex) B/W17.5 b/w-pages/min.
  • Print speed (A4, Simplex) Colour35 colour pages/min
  • Copy speed (A4, Simplex) Colour35 colour pages/min
  • Print speed (A4, Duplex) Colour17.5 colour pages/min
  • Copy speed (A4, Duplex) Colour17.5 colour pages/min
  • 1st page (printing, colour)7 seconds
  • 1st page (printing, b/w)5.7 seconds
  • 1st page (copying, colour)7.2 seconds
  • 1st page (copying, b/w)6.1 seconds
  • Warm-up time26 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 250 sheet
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)220 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)163 g/m²
  • Paper output250 sheet A4
  • System memory (RAM)1.5 GB
  • System memory (RAM max)3 GB
  • System memory (Optional)64/256/512 GB SSD
  • Continuous copying (min)1
  • Continuous copying (max)999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • FunctionsAdjustable colour touch screen (7 inch), duplex, job reservation, job programs, ID card copy, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), login by function, 100 management codes, etc.

Dimensions / Weight

  • Dimensions (height)575 mm
  • Dimensions (width)480 mm
  • Dimensions (depth)576.5 mm
  • Weight39 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50 Hz
  • Power consumption (max)1329 W
  • Power consumption (busy)391 W
  • Power consumption (standby)19 W
  • Power consumption (sleep)0.6 W
  • Power consumption (TEC)0.34 kwh/week
  • Noise level (busy, b/w)48.7 dB(A)
  • Noise level (busy, colour)48.7 dB(A)
  • Noise level (standby)undefined dB(A)
  • SafetyGS/TÜV, CE

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-A4
  • Print resolution (min)600 x 600 dpi
  • Print resolution (max)1,200 x 1,200 dpi (reduced speed)
  • ProcessorARM Cortex-A9 Dual core 1.2 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (2), Wi-Fi
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 8, Windows 8.1, Windows 10, Server 2012 R2, Server 2016, Server 2019, Server 2022, Chrome OS, Mac ab OS 10.14, Linux
  • EmulationsPCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ilc, XPS, PDF 1.7
  • Functions200 dpi, USB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, quiet mode (half speed mode), barcode printing, Mobile Print (Android/iOS), Apple AirPrint, Wi-Fi, Microsoft Universal Print

Scanning system

  • Scan typeCCD colour and b/w
  • Scan formatmax A4
  • Scan speed (Feeder 1, simplex, colour)40 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)60 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)80 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)100 DIN-A4-image pages/min. in 300 dpi
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modePhoto, text, photo/text, optimised for OCR
  • File typesTIFF, JPEG, PDF, PDF/A-1, PDF/A-2, high compression PDF, encrypted PDF, XPS, OpenXPS, MS Office/text-searchable PDF
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows 8, Windows 8.1, Windows 10, Server 2012 R2, Server 2016, Server 2019
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP, Multi Crop Belegscan

Options

  • Other optionsScan extension kit (A), Card authentication kit (B), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, HD-18 SSD (256 GB), HD-17 SSD (64 GB), HD-19 SSD (512 GB), IB-37 WLAN card (IEEE802.11a/b/g/n/ac), UG-35 Trusted Platform Module, IB-51 WLAN card (IEEE802.11/b/g/n)

Notes on technical data

  1. depending on the operating status↩
  2. depending on the operating status↩
  3. depending on the operating status↩
  4. depending on the operating status↩
  5. depending on the operating status↩
  6. DIN/ISO 7779/9296↩
  7. optional↩
  8. optional↩
  9. optional↩
  10. optional↩
  11. additional memory required for full functionality↩
