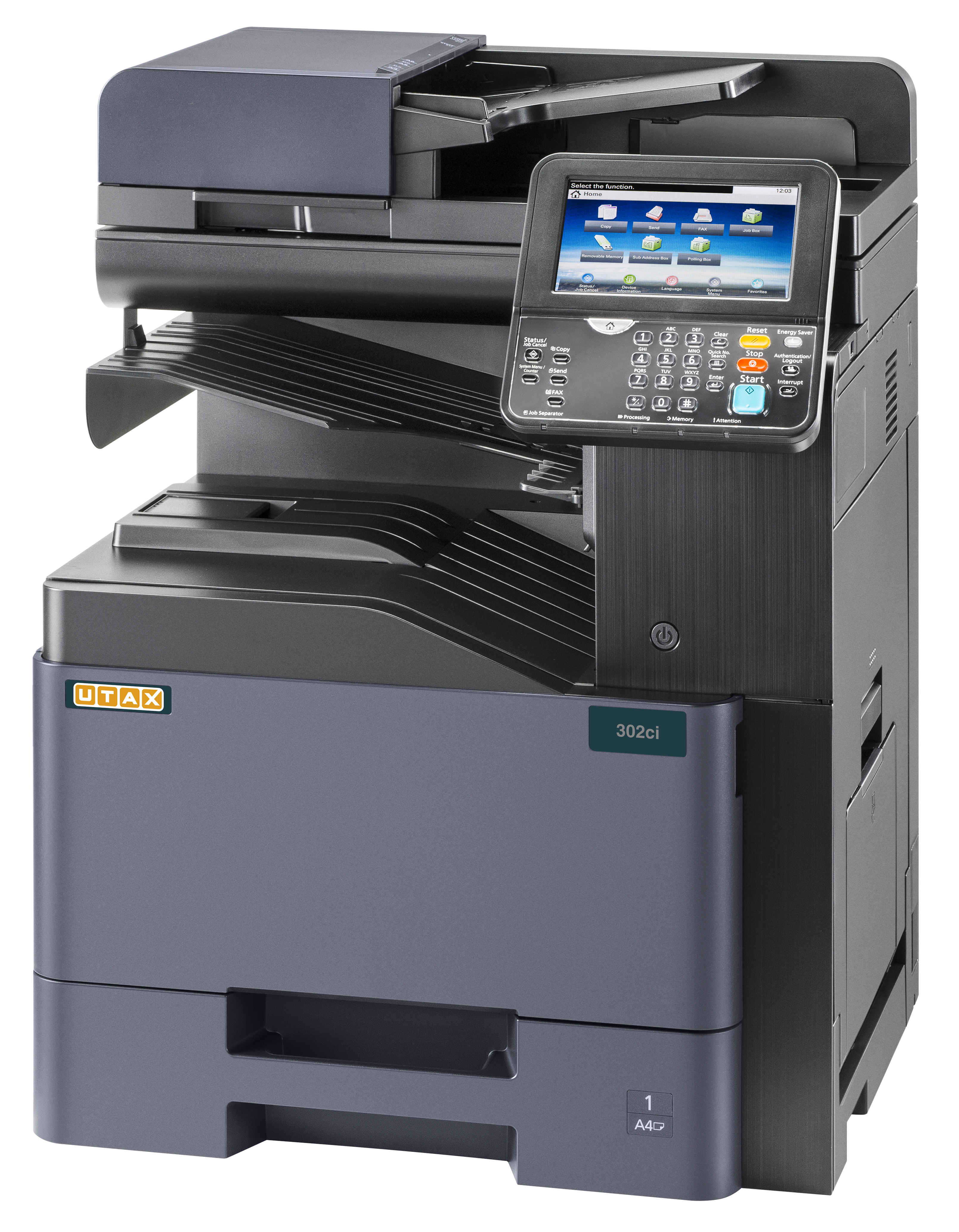

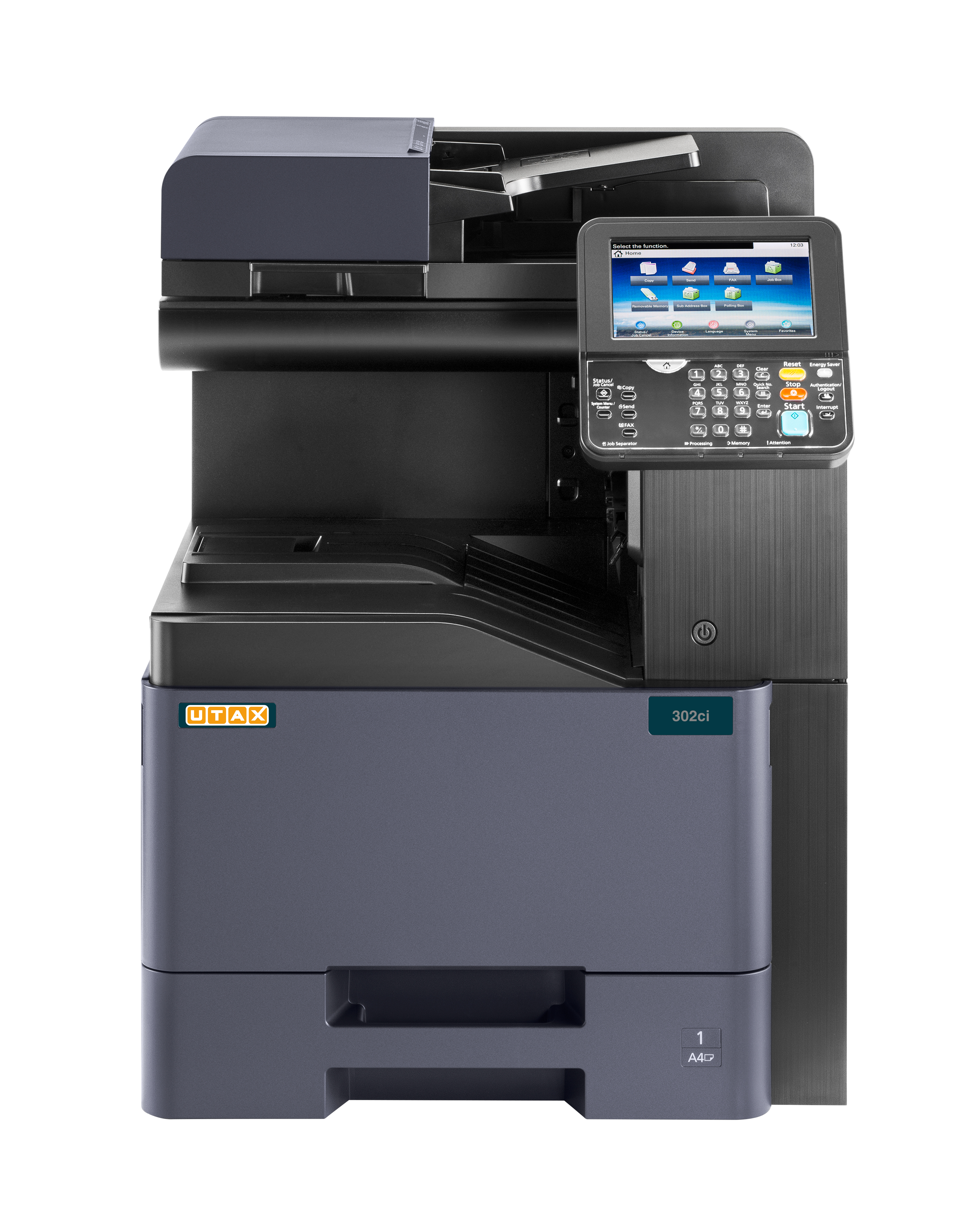

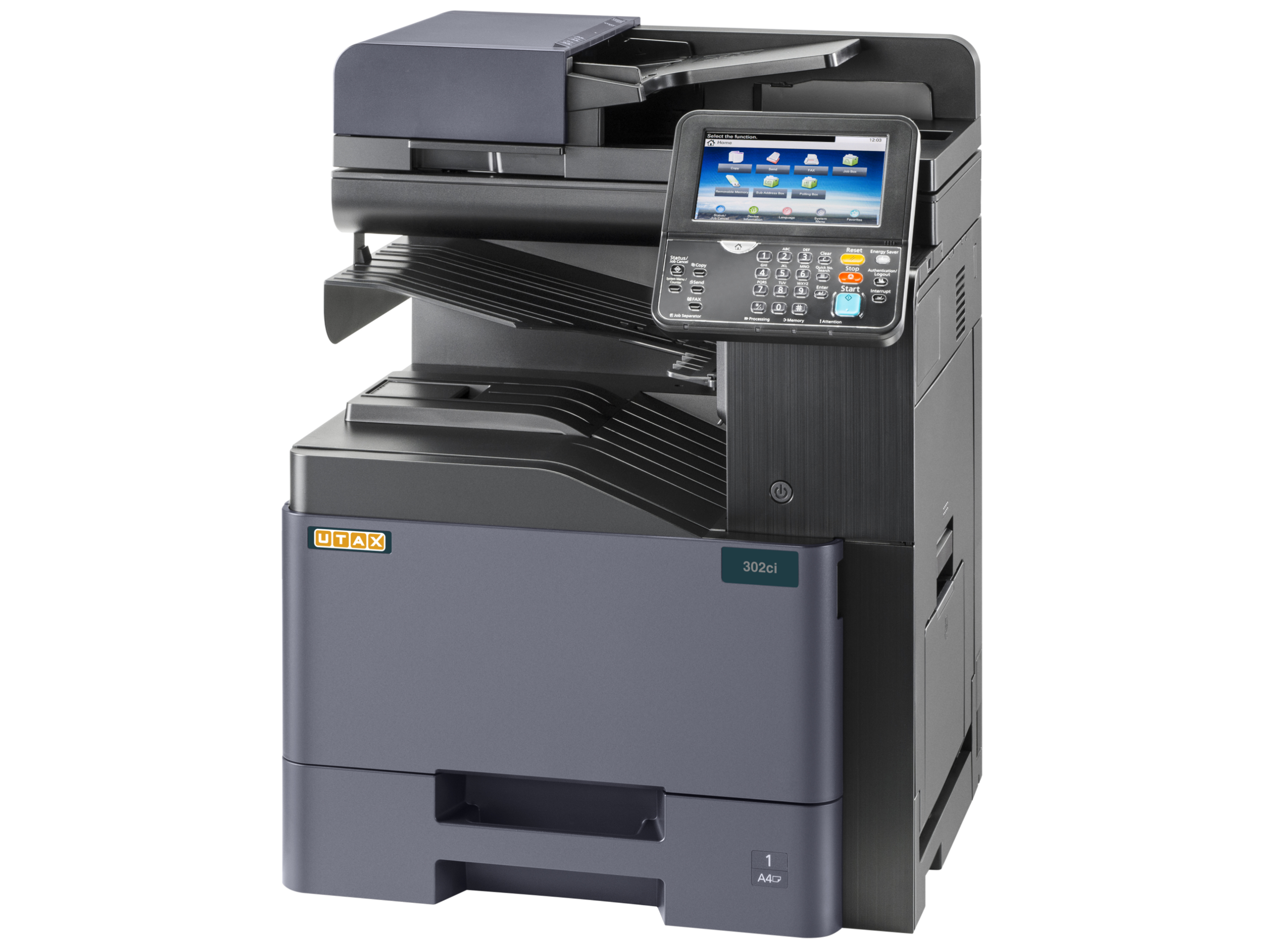

302ci

The 302ci is the perfect A4 multifunctional colour system for you! It can be very intuitively operated via its large touch display, offers comprehensive features and a high print quality of up to 1,200 x 1,200 dpi – while also being incredibly versatile, flexible and discreet. Notwithstanding its remarkable performance scope, the 302ci is highly impressive when it comes to its environmental compatibility, as it is whisper-quiet and energy-saving at the same time. In other words, it offers both maximum performance and minimum consumption at once.

Find a Retailer
302ci Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, optional: fax
  • Print technologyLaser colour and b/w
  • Original formatmax A4 from platen glass
  • Original feeder75 sheet A4 (standard, with auto reverse function), A6R-A4, 50-120 g/m² (simplex/duplex), banner: 915 mm length, A4 width
  • Print speed (A4, Simplex) B/W30 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W30 b/w-pages/min.
  • Print speed (A4, Duplex) B/W30 b/w-pages/min.
  • Copy speed (A4, Duplex) B/W30 b/w-pages/min.
  • Print speed (A4, Simplex) Colour30 colour pages/min
  • Copy speed (A4, Simplex) Colour30 colour pages/min
  • Print speed (A4, Duplex) Colour30 colour pages/min
  • Copy speed (A4, Duplex) Colour30 colour pages/min
  • 1st page (printing, colour)8 seconds
  • 1st page (printing, b/w)7 seconds
  • 1st page (copying, colour)7.8 seconds
  • 1st page (copying, b/w)6.4 seconds
  • Warm-up time20 seconds
  • Copy resolutionmax 600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 500 sheet
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)220 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)220 g/m²
  • Paper output500 sheet A4
  • System memory (RAM)1.5 GB
  • System memory (RAM max)3 GB
  • System memory (Optional)32/128 GB SSD
  • Continuous copying (min)1
  • Continuous copying (max)999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • FunctionsAdjustable colour touch screen (10.1 inch), duplex, job reservation, job programs, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), login by function, 100 management codes

Dimensions / Weight

Environment

  • Mains voltage220/240 V
  • Utility frequency50/60 Hz
  • Power consumption (max)1317 W
  • Power consumption (busy)497 W
  • Power consumption (standby)69 W
  • Power consumption (sleep)0.5 W
  • Power consumption (TEC)0.42 kwh/week
  • Noise level (busy, b/w)49.9 dB(A)
  • Noise level (busy, colour)50.1 dB(A)
  • Noise level (standby)undefined dB(A)
  • SafetyGS/TÜV, CE

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-A4
  • Print resolution (min)600 x 600 dpi
  • Print resolution (max)1,200 x 1,200 dpi (reduced speed)
  • ProcessorARM Cortex-A9 Dual core 1.2 GHz , ARM Cortex-M3 100 MHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (2)
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.9
  • EmulationsPCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ilc, PDF 1.7, XPS, Open XPS
  • Functions200 dpi, USB direct printing, printing of e-mails, PDF/XPS direct printing, private printing, barcode printing, quiet mode (half speed mode), Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, Wi-Fi

Scanning system

  • Scan typeCCD colour and b/w
  • Scan formatmax A4
  • Scan speed (Feeder 1, simplex, colour)30 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)40 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)13 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)17 DIN-A4-image pages/min. in 300 dpi
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modePhoto, text, photo/text, optimised for OCR
  • File typesTIFF, JPEG, PDF, high compression PDF, encrypted PDF, text-searchable PDF, XPS, OpenXPS
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WSD scan, SMTP authentication, LDAP

Fax system

  • Typeoptional Fax System 11
  • CompatibilitySuper G3
  • Original formatmax A4
  • Modem speed33.6 kbps
  • Transmission speed3 seconds or less using JBIG
  • Compression methodJBIG, MMR, MR, MH
  • Fax resolutionmax 400 x 400 dpi
  • Fax memory8 MB
  • Fax memory (image)3.5 MB
  • Abbreviated dial200 numbers
  • One touch dial100 numbers
  • Group dial50 numbers
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission

Options

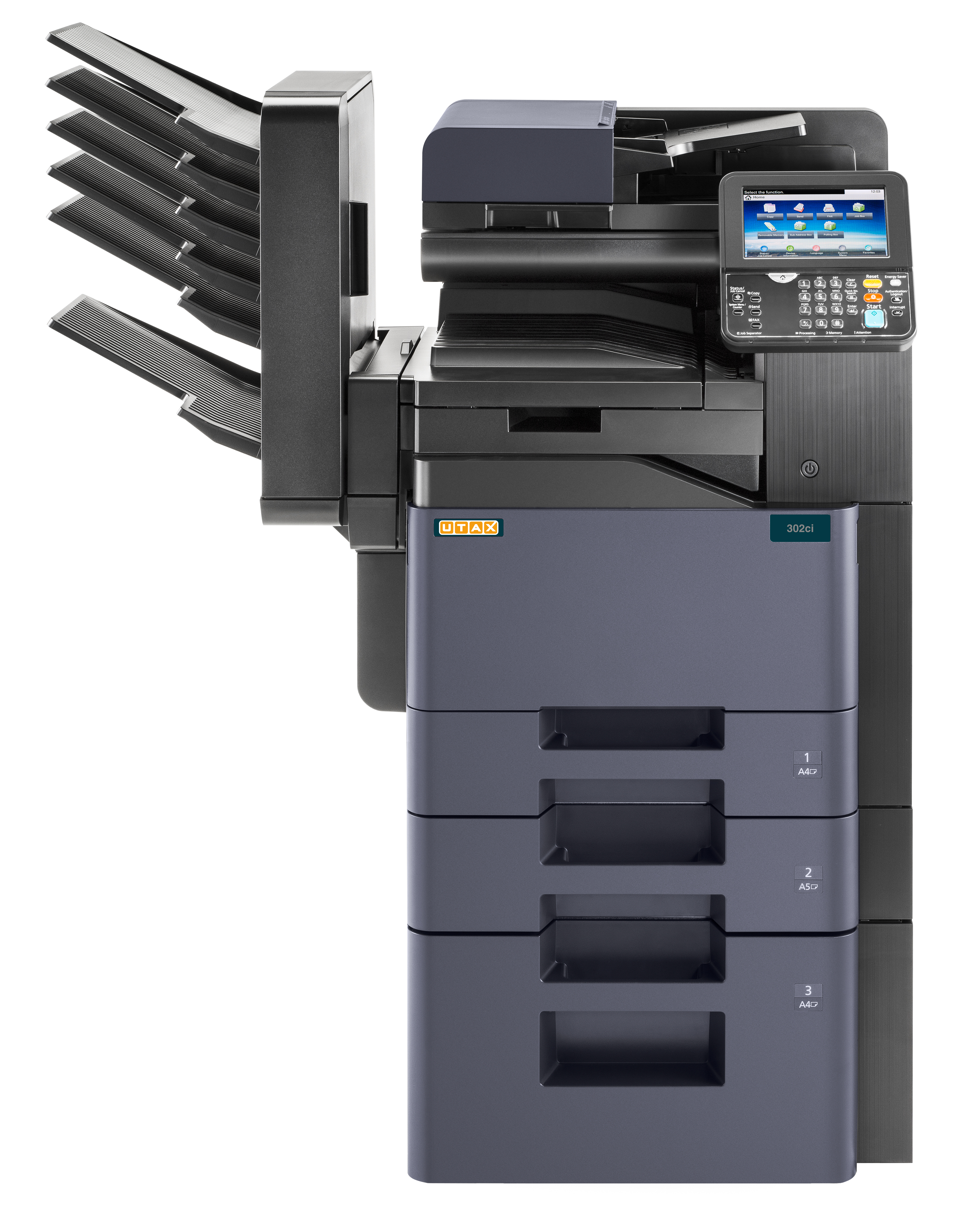

  • FinisherDF-5100 internal finisher (capacity: 300 sheet A4, stapling max 50 sheet A4), MT-5100 multi tray (500 sheet + 5 x 100 sheet A4; cannot be combined with DF-5100/DF-5110/DF-5210/JS-5100)
  • Job SeparatorJS-5100 (capacity: 100 sheet A4)

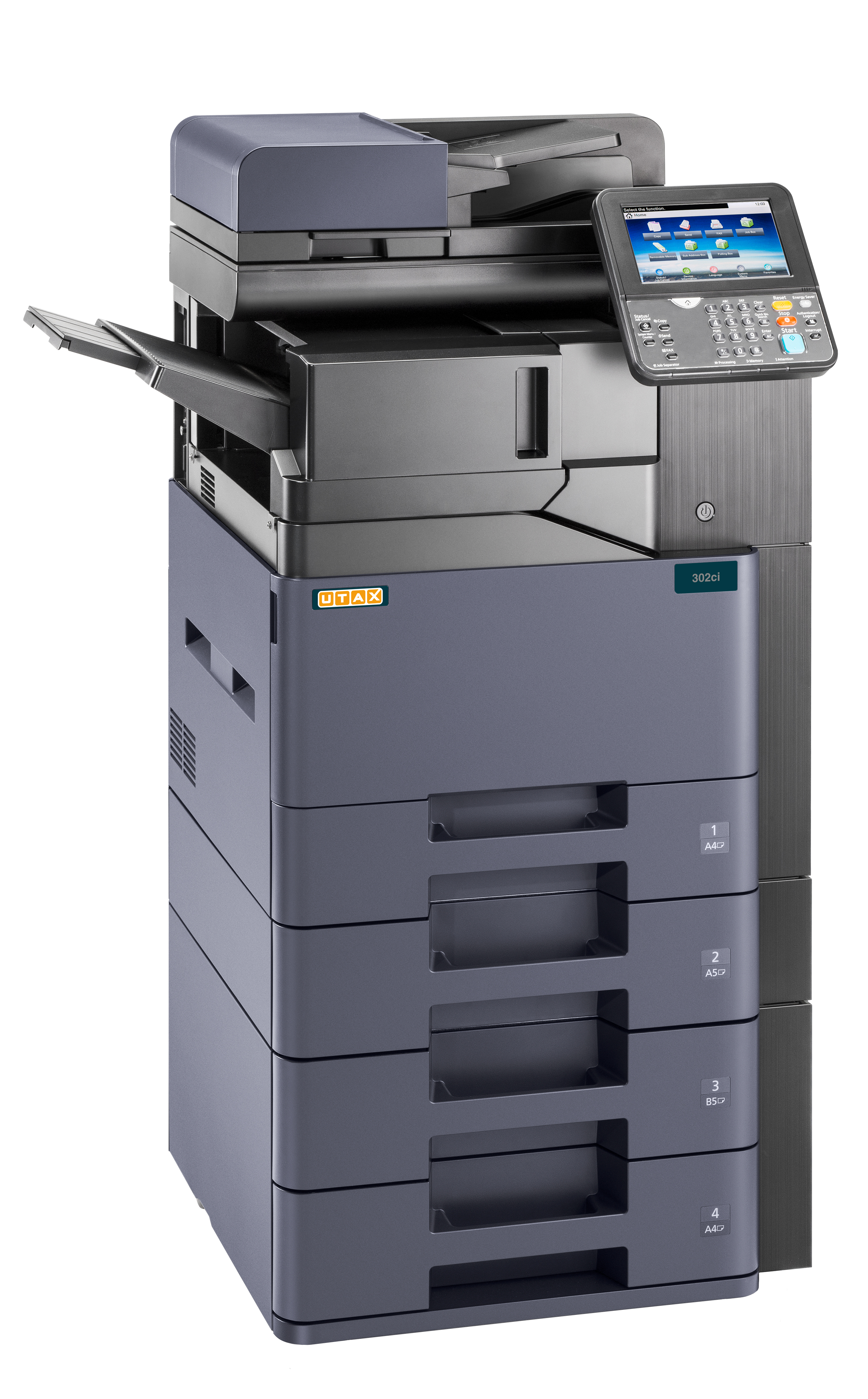

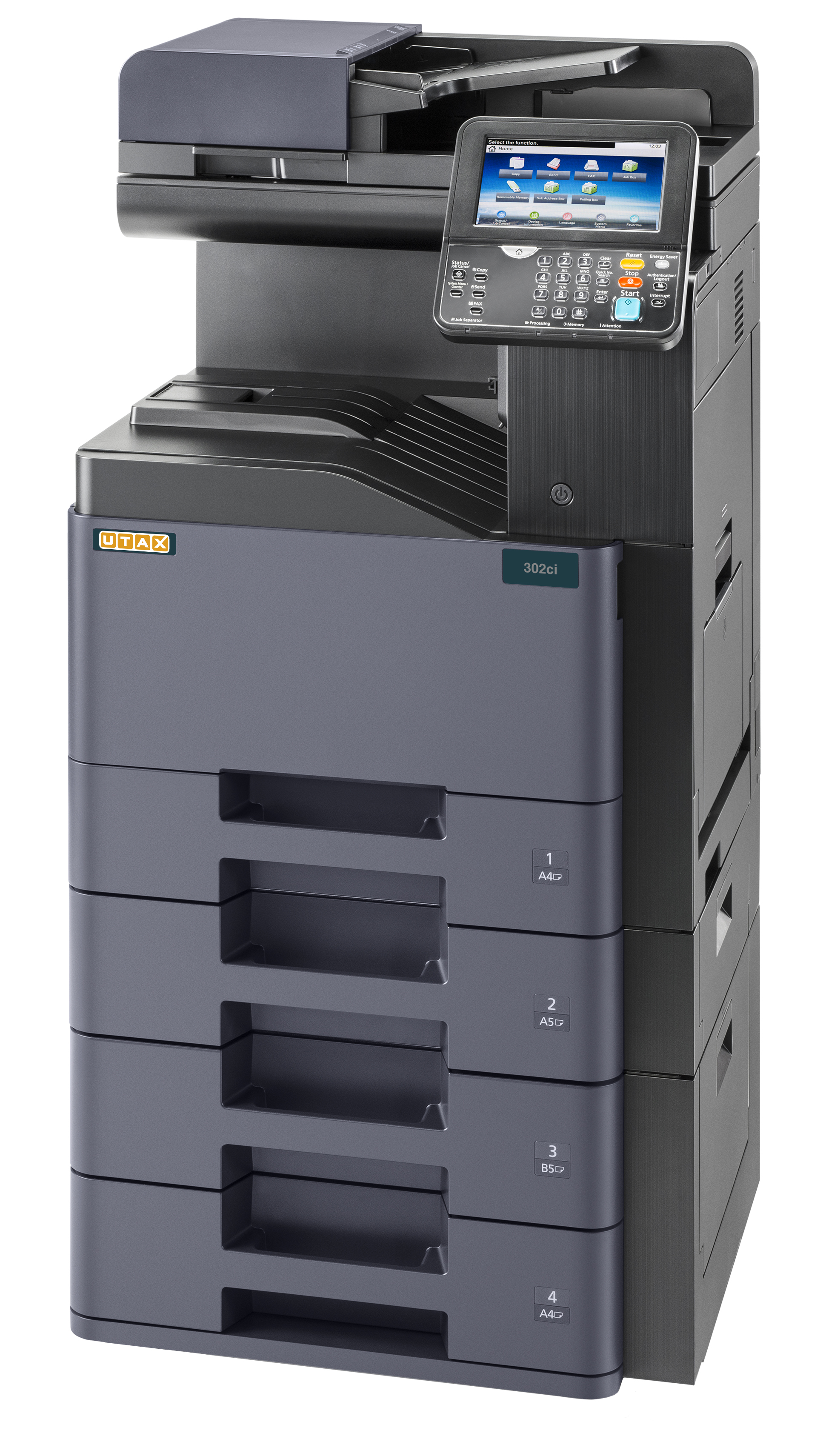

  • Paper feedPF-5120 (1 x 500 sheet universal cassettes [A6R-A4]), PF-5130 (2 x 500 sheet universal cassettes [A6R-A4]), PF-5140 (2,000 sheet large capacity tray [A4]), 1 x PF-5120 is required for installation of PF-5130 or PF-5140!
  • Other optionsData security kit (E), Card authentication kit (B), Card reader holder (11), Scan extension kit (A), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, IB-35/IB-51 WLAN card, HD-6 SSD (32 GB), HD-7 SSD (128 GB), DT-5100 document tray, cabinet no. 74 (high), cabinet no. 75 (low)

Notes on technical data

  1. depending on the operating status↩
  2. depending on the operating status↩
  3. depending on the operating status↩
  4. depending on the operating status↩
  5. depending on the operating status↩
  6. with DP↩
  7. with DP↩
  8. with DP↩
  9. with DP↩
  10. not measurable (ISO 7779/9296)↩
  11. optional↩
  12. optional↩
  13. When using HD-6 or HD-7, the Data Security Kit can be activated free of charge.↩
  14. additional memory required↩
