3508ci

Are you looking to increase your productivity, simplify processes and drive digitalisation with simple solutions and without overburdening your company? This can be achieved in no time with the innovative 3508ci A3 multifunctional system. The system print at speed of 35 A4 pages per minute, respectively, in colour and in black and white. The wide selection of different document processors and numerous finishing options give you the opportunity to easily adapt your multifunctional system to fit your company needs. The concept is rounded off by software solutions that process the increasing volume of data in a structured and reliable manner.

Find a Retailer

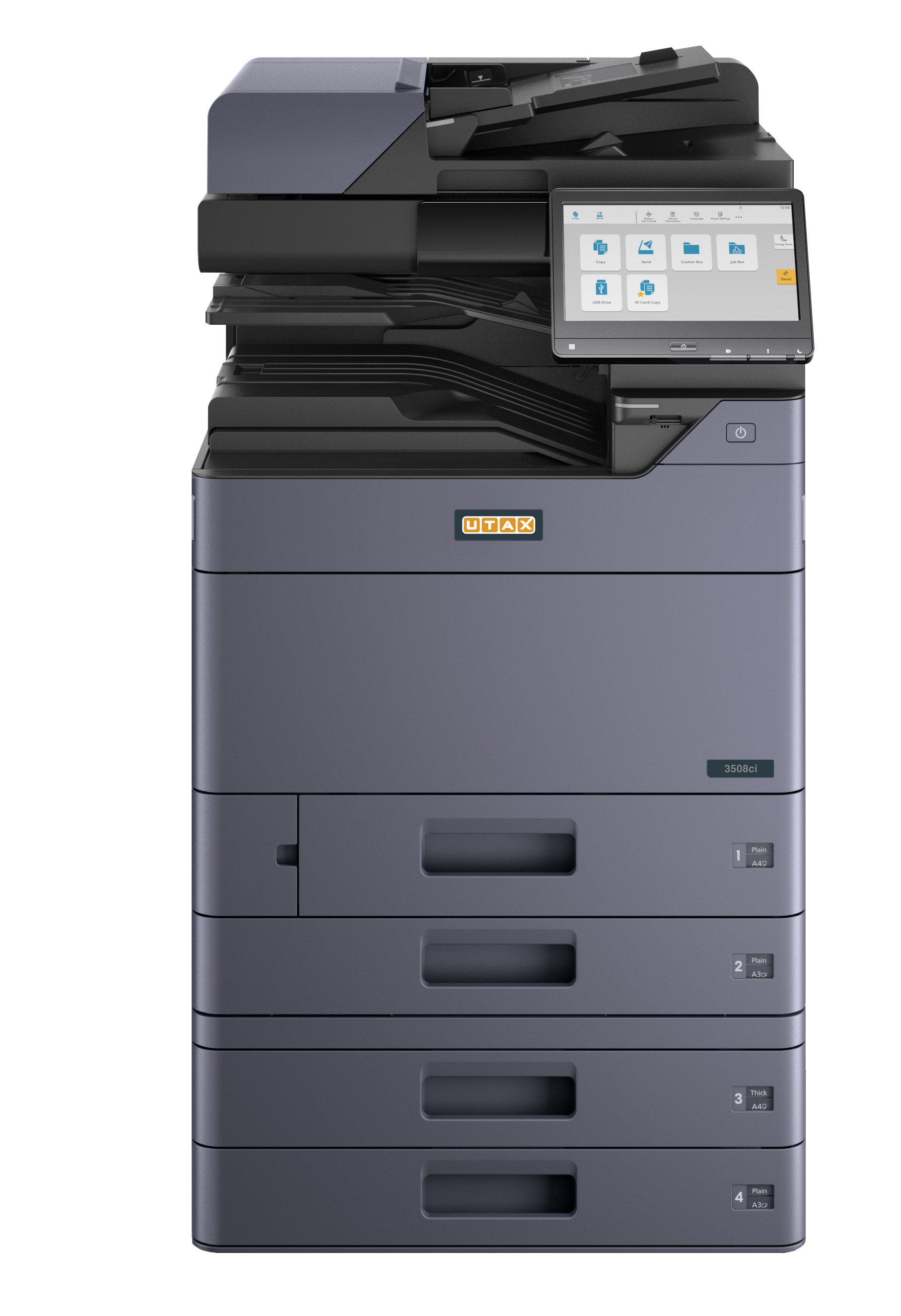

3508ci Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, optional: fax
  • Print technologyLaser colour and b/w
  • Original formatmax A3 from platen glass
  • Print speed (A4, Simplex) B/W35 b/w-pages/min.
  • Print speed (A3, Simplex) B/W17 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W35 b/w-pages/min.
  • Copy speed (A3, Simplex) B/W17 b/w-pages/min.
  • Print speed (A4, Simplex) Colour35 colour pages/min
  • Print speed (A3, Simplex) Colour17 colour pages/min
  • Copy speed (A4, Simplex) Colour35 colour pages/min
  • Copy speed (A3, Simplex) Colour17 colour pages/min
  • 1st page (printing, colour)7.7 seconds
  • 1st page (printing, b/w)5.9 seconds
  • 1st page (copying, colour)7 seconds
  • 1st page (copying, b/w)5.3 seconds
  • Warm-up time18 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)2 x 500 sheet universal cassettes
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (2nd cassette types)A6R-SRA3
  • Paper feed (Multi-Bypass amount)1 x 500 sheet
  • Paper feed (Multi-Bypass types)A6R-SRA3, Banner [305 x 1,219 mm]
  • Paper feed (print-only)SRA3 and banner
  • Paper weights (Universal cassette min)52 g/m²
  • Paper weights (Universal cassette max)300 g/m²
  • Paper weights (Multi-Bypass min)52 g/m²
  • Paper weights (Multi-Bypass max)300 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)256 g/m²
  • Paper output500 sheet A4
  • System memory (RAM)4 GB
  • System memory (SSD)32 GB
  • System memory (Optional)320 GB HDD
  • Continuous copying (min)1
  • Continuous copying (max)9999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • FunctionsAdjustable colour touch screen (10.1 inch), duplex, 1000 management codes, skip blank pages, motion sensor, encryption/overwriting of hard disk data (Data Security Kit and Trusted Platform Module), secure boot and run time integrity check, trusted platform modul (TPM), etc.

Dimensions / Weight

  • Dimensions (height)790 mm
  • Dimensions (width)602 mm
  • Dimensions (depth)665 mm
  • Weight90 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50/60 Hz
  • Power consumption (max)1750 W
  • Power consumption (busy)520 W
  • Power consumption (standby)40 W
  • Power consumption (sleep)0.5 W
  • Power consumption (TEC)0.44 kwh/week
  • SafetyGS/TÜV, CE

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-SRA3
  • Print resolution (min)600 x 600 dpi
  • Print resolution (max)1,200 x 1,200 dpi
  • ProcessorARM A53 1,6GHz
  • InterfacesUSB 3.0, USB 2.0, 10/100/1000BaseTX, USB host, NFC, SD-Card Slot
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.9
  • EmulationsPCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), XPS, PRESCRIBE Ilc
  • FunctionsUSB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, barcode printing, SNMPv3, Mobile Print (Android, iOS)/Apple AirPrint

Scanning system

  • Scan typeCCD colour and b/w
  • Scan formatmax A3
  • Scan speed (Feeder 1, simplex, colour)100 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)100 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)200 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)200 DIN-A4-image pages/min. in 300 dpi
  • Optional feeder 1DP-7170 document processor with simultaneous duplex scanning and multi-feed detection (A6R-A3, capacity: 320 sheet A4, paper weight 35-220 g/m²)
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modePhoto, text, photo/text, optimised for OCR
  • File typesTIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, XPS, OpenXPS
  • Interfaces10/100/1000BaseTX
  • Network protocolTCP/IP
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP

Fax system

  • TypeFaxsystem 12
  • CompatibilitySuper G3
  • Original formatmax A3
  • Modem speed33.6 kbps
  • Transmission speed3 seconds or less using JBIG
  • Compression methodJBIG, MMR, MR, MH
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi), 600 x 600 dpi
  • Fax memory170 MB
  • Abbreviated dial2000 numbers
  • One touch dial1000 numbers
  • Group dial500 numbers
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission, max 2 fax kits for parallel transmission and reception

Options

  • Original feederDP-7150 document processor with automatic reverse function (A6R-A3, capacity: 140 sheet A4, paper weight 35- 160 g/m²), DP-7140 document processor with automatic reverse function (A5R-A3, capacity: 50 sheet A4, paper weight 45-160 g/m²), DP-7160 document processor with simultaneous duplex scanning (A6R-A4, capacity: 320 sheet A4, paper weight 35-220 g/m²), DP-7170 document processor with simultaneous duplex scanning and multi-feed detection (A6R-A3, capacity: 320 sheet A4, paper weight 35-220 g/m²)
  • Original platen coverPlaten cover type E (if document processor is not installed)
  • FinisherDF-7100 internal finisher (capacity: 500 sheet A4, stapling max 50 sheet A4), DF-7120 (capacity: 1,000 sheet A4, stapling max 50 sheet A4),, PH-7120 hole punch unit for DF-7100, PH-7C hole punch unit for DF-7120/7140, BF-730 brochure module for DF-7140 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max X sheet A4), DF-7140 (capacity: 4,000 sheet A4, stapling max 65 sheet A4), MT- 730 (B) Multi Tray für DF-7140
  • Job SeparatorJS-7100 (100 sheet, 52-300 g/m², A6R - SRA3), JS-7110 inner shift tray (250 sheet, 52-300 g/m², A6R - SRA3)
  • Paper feedPF-7140 (2 x 500 sheet universal cassettes [A5R-SRA3]), PF-7150 (2 x 1,500 sheet large capacity cassette [A4]), PF-7120 (3,000 sheet large capacity tray [A4], side deck)
  • Other optionsScan extension kit (A), Internet fax kit (A), Card authentication kit (B), Keyboard holder 10, Banner guide 10, UG-33 ThinPrint® kit, UG-34 Emulation option kit, IB-50 Gigabit Ethernet card, IB-51 WLAN card (IEEE802.11/b/g/n), IB-37 WLAN card (IEEE802.11a/b/g/n/ac), NK-7120 Numeric Keyboard (10 keys), DT-730(B) Document tray, cabinet no. 81, HD-15 (320 GB HDD), HD-16 (1 TB HDD)

Notes on technical data

  1. depending on the operating status↩
  2. depending on the operating status↩
  3. depending on the operating status↩
  4. depending on the operating status↩
  5. depending on the operating status↩
  6. for copy, print, scan, fax↩
  7. optional↩
