7058i

Office systems in the mid-range segment not only have to offer brilliant quality, but also professional paper management as well. That is why we developed the 7058i A3 b/w multifunctional systems which, in addition to output speeds of 70 A4 pages/minute in b/w, also provide additional finishing components for your output management. With the optional Z-fold or inserter unit, you gain new opportunities for minimising manual tasks and professionalising your results. Not to mention the impressively intuitive operation on the tiltable 10.1-inch (25.6cm) colour touch display and outstanding environmental compatibility.

Find a Retailer

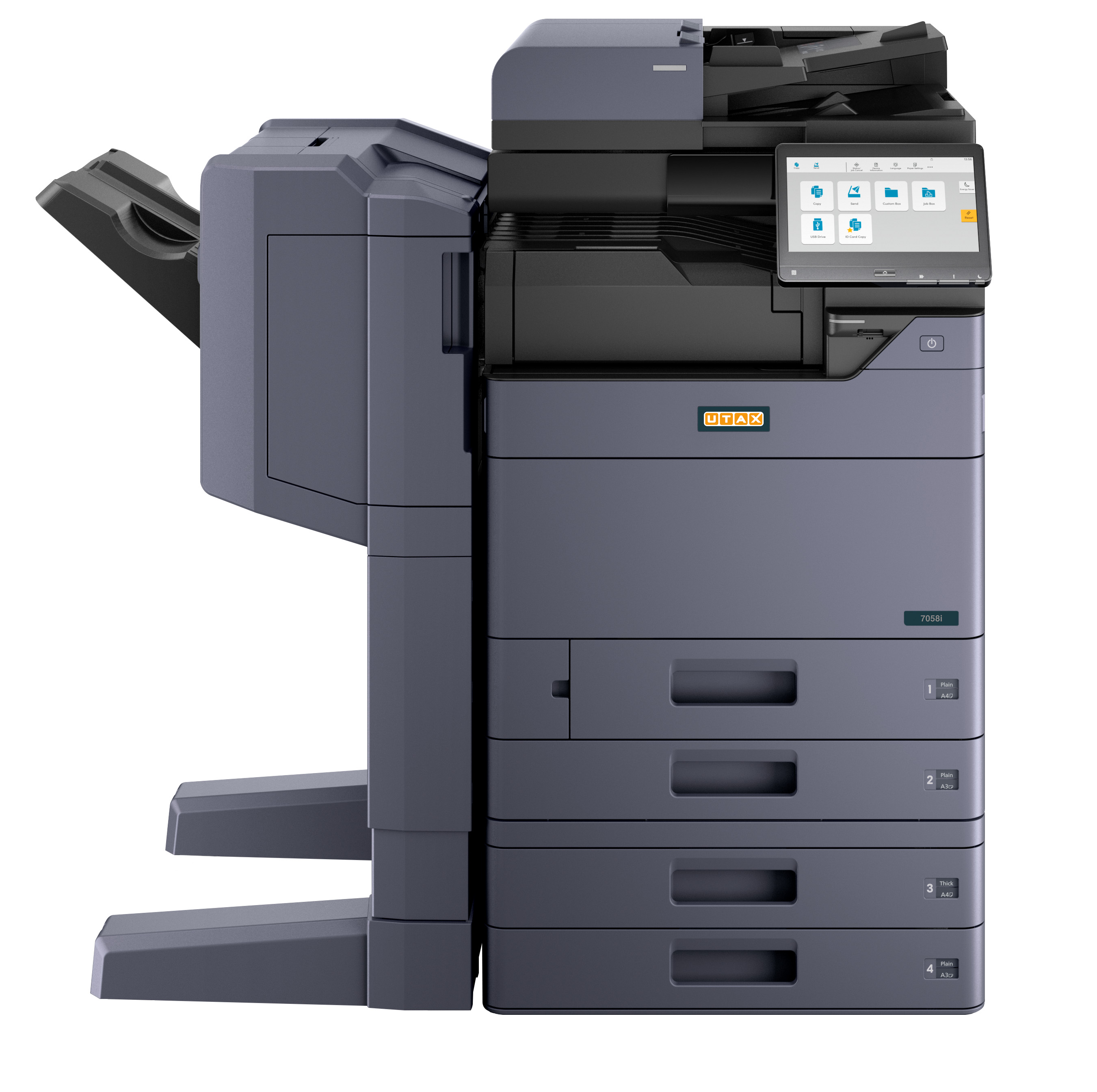

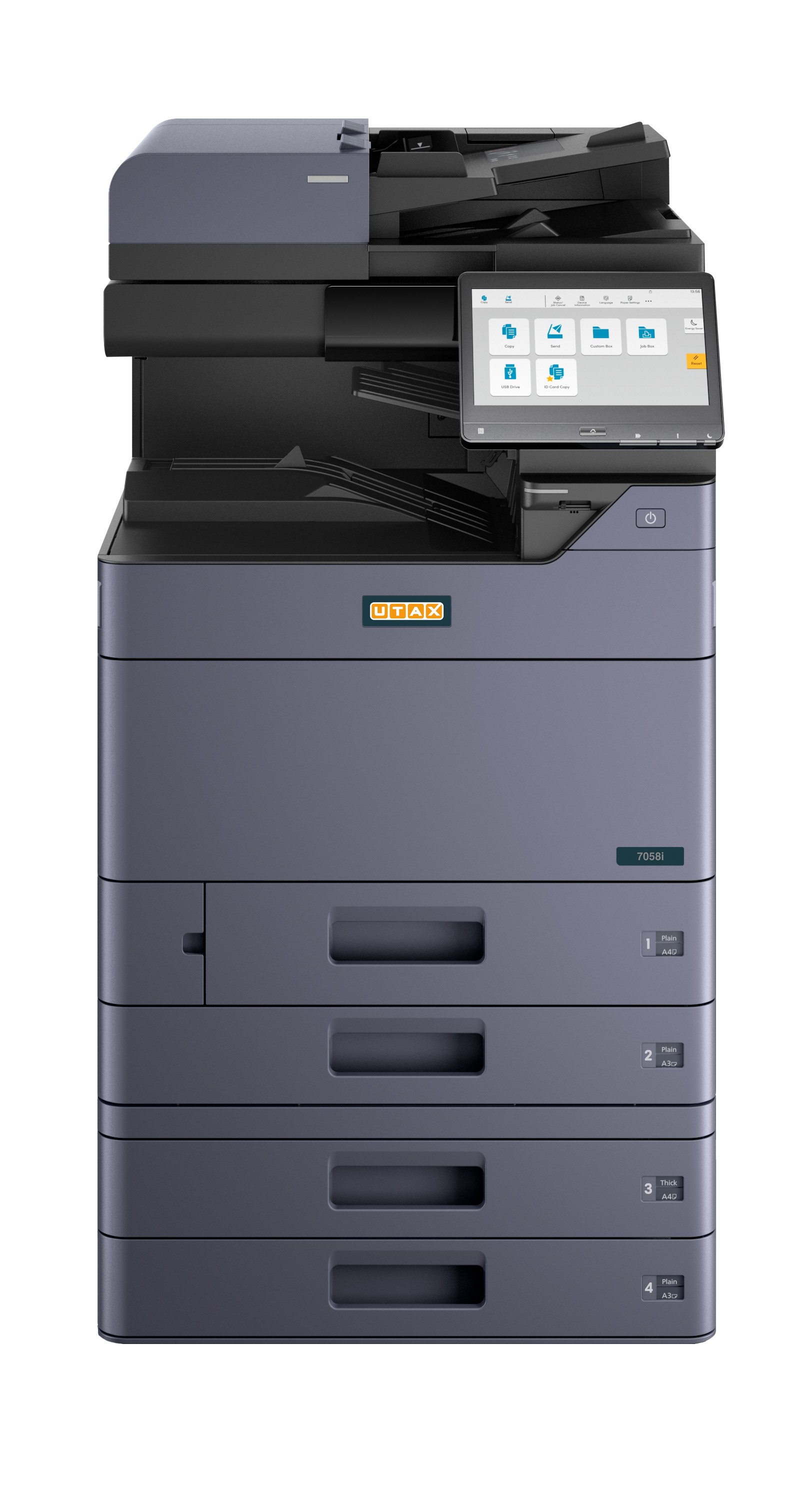

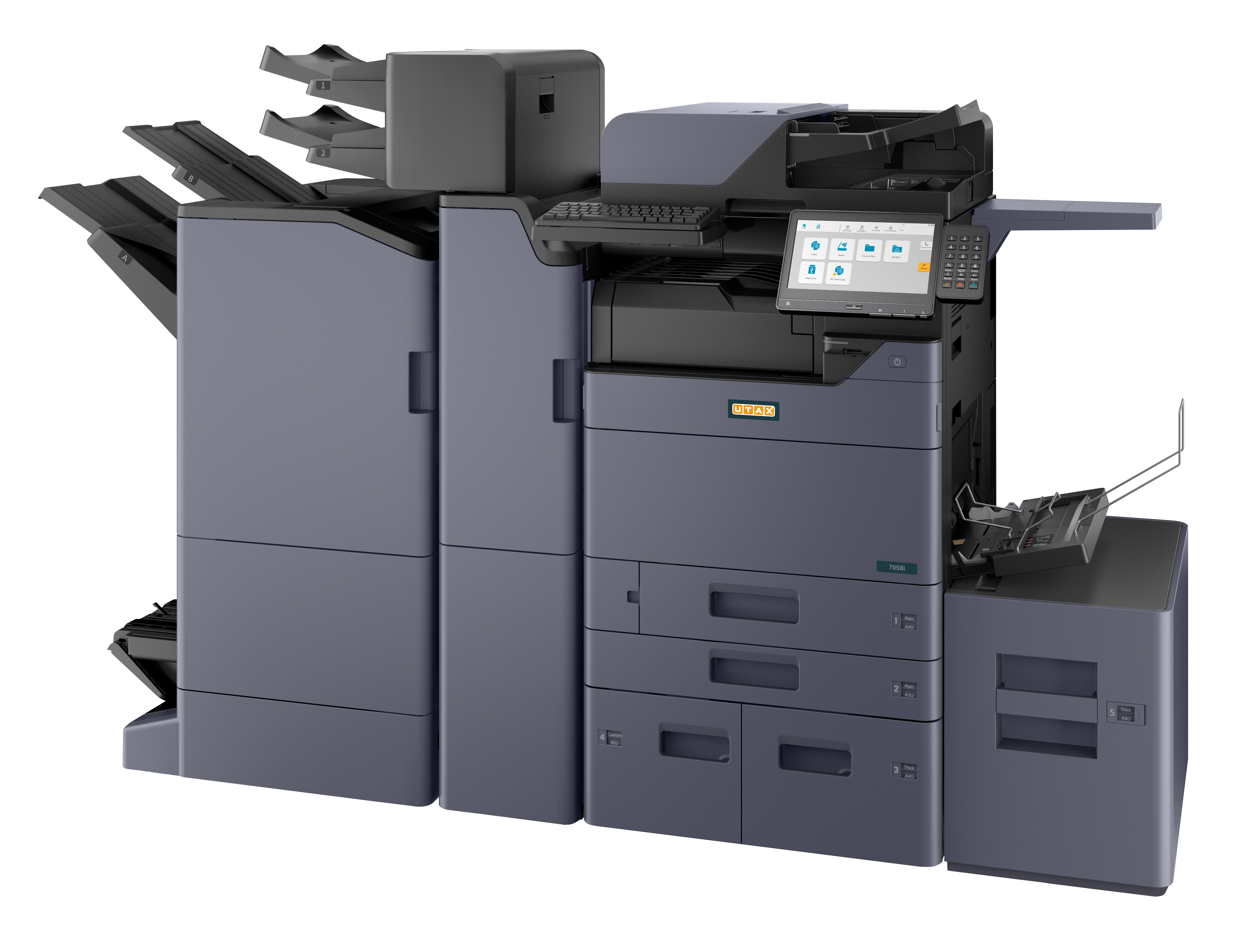

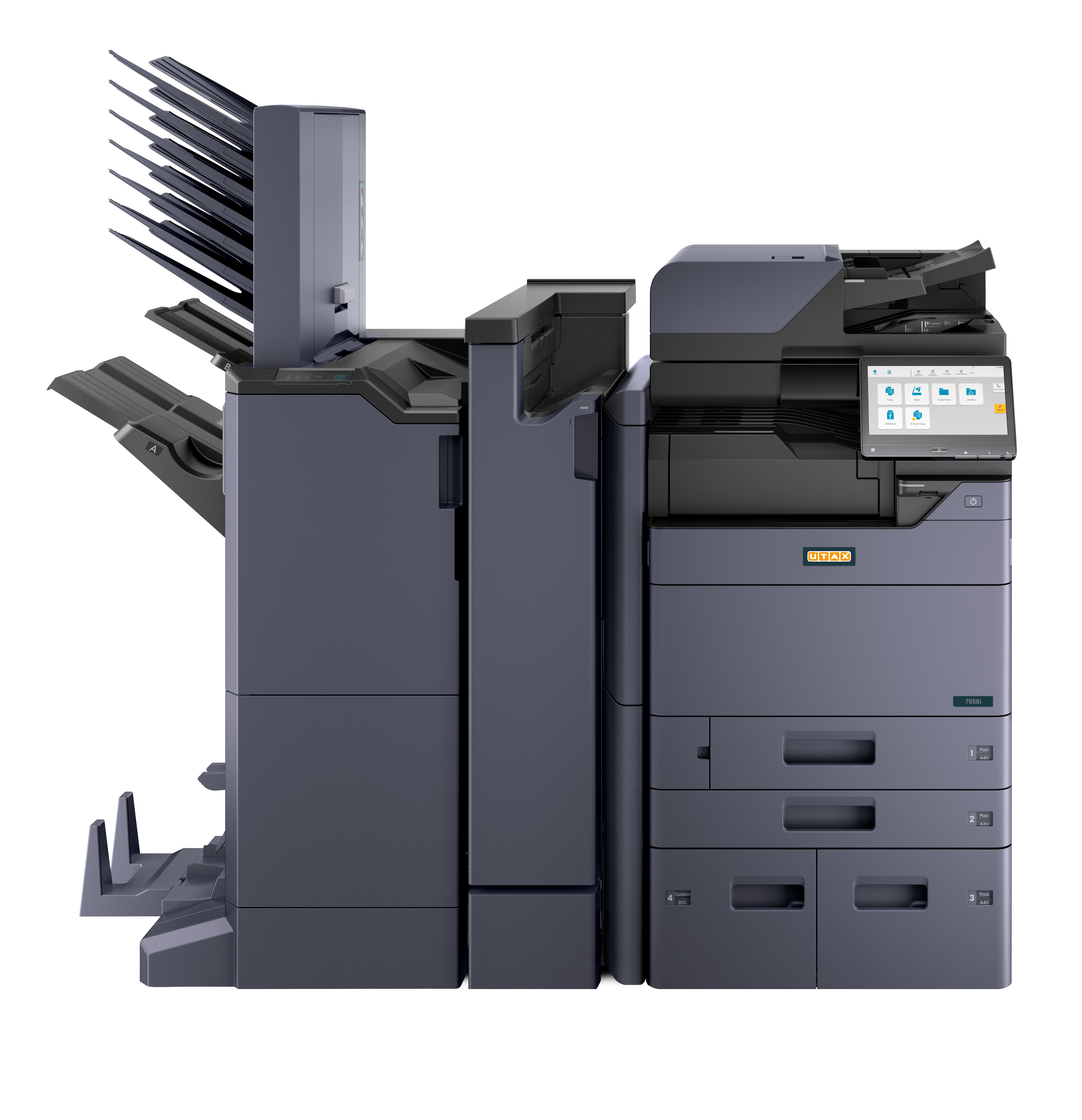

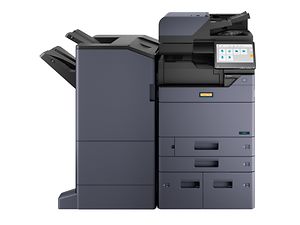

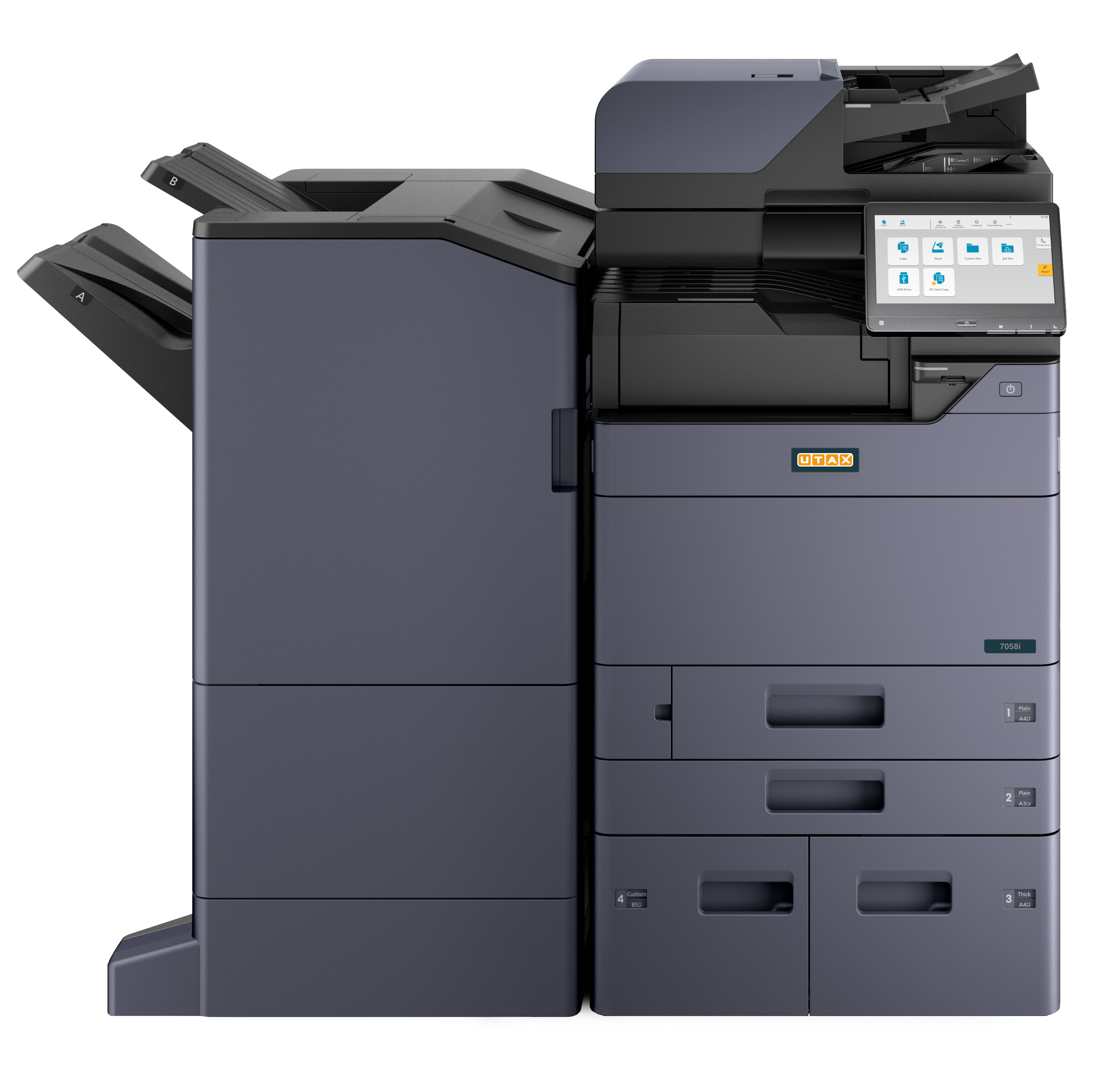

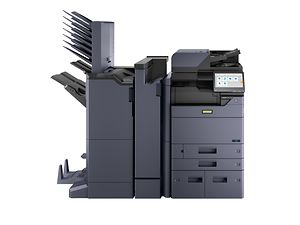

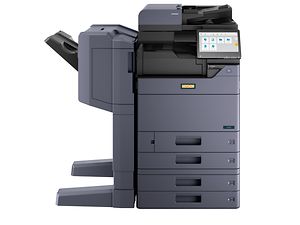

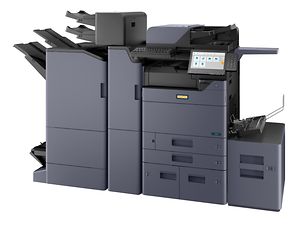

7058i Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, optional: fax
  • Print technologyLaser b/w
  • Original formatmax A3 from platen glass
  • Print speed (A4, Simplex) B/W70 b/w-pages/min.
  • Print speed (A3, Simplex) B/W35 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W70 b/w-pages/min.
  • Copy speed (A3, Simplex) B/W35 b/w-pages/min.
  • 1st page (printing, colour)undefined seconds
  • 1st page (printing, b/w)3.8 seconds
  • 1st page (copying, colour)undefined seconds
  • 1st page (copying, b/w)3.4 seconds
  • Warm-up time17 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)2 x 500 sheet universal cassettes
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (2nd cassette types)A6R-SRA3
  • Paper feed (Multi-Bypass amount)1 x 500 sheet
  • Paper feed (Multi-Bypass types)A6R-SRA3, Banner [305 x 1,219 mm]
  • Paper feed (print-only)SRA3 and banner
  • Paper weights (Universal cassette min)52 g/m²
  • Paper weights (Universal cassette max)300 g/m²
  • Paper weights (Multi-Bypass min)52 g/m²
  • Paper weights (Multi-Bypass max)300 g/m²
  • Paper weights (Duplex min)64 g/m²
  • Paper weights (Duplex max)256 g/m²
  • Paper output500 sheet A4
  • System memory (RAM)4 GB
  • System memory (SSD)64 GB
  • System memory (Optional)320 GB HDD
  • Continuous copying (min)1
  • Continuous copying (max)9999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • FunctionsAdjustable colour touch screen (10.1 inch), duplex, 1000 management codes, skip blank pages, motion sensor, encryption/overwriting of hard disk data (Data Security Kit and Trusted Platform Module), secure boot and run time integrity check, trusted platform modul (TPM), etc.

Dimensions / Weight

  • Dimensions (height)790 mm
  • Dimensions (width)602 mm
  • Dimensions (depth)665 mm
  • Weight83 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50/60 Hz
  • Power consumption (max)1750 W
  • Power consumption (busy)850 W
  • Power consumption (standby)45 W
  • Power consumption (sleep)0.5 W
  • Power consumption (TEC)0.95 kwh/week
  • SafetyGS/TÜV, CE

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-SRA3
  • Print resolution (min)600 x 600 dpi
  • Print resolution (max)1,200 x 1,200 dpi
  • ProcessorARM A53 1,6GHz
  • InterfacesUSB 3.0, USB 2.0, 10/100/1000BaseTX, USB host, NFC, SD-Card Slot
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.9
  • EmulationsPCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), XPS, PRESCRIBE Ile
  • FunctionsUSB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, barcode printing, SNMPv3, Mobile Print (Android, iOS)/Apple AirPrint

Scanning system

  • Scan typeCCD colour and b/w
  • Scan formatmax A3
  • Scan speed (Feeder 1, simplex, colour)137 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)137 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)274 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)274 DIN-A4-image pages/min. in 300 dpi
  • Optional feeder 1DP-7170 document processor with simultaneous duplex scanning and multi-feed detection (A6R-A3, capacity: 320 sheet A4, paper weight 35-220 g/m²)
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modePhoto, text, photo/text, optimised for OCR
  • File typesTIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, XPS, OpenXPS
  • Interfaces10/100/1000BaseTX
  • Network protocolTCP/IP
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP

Fax system

  • TypeFaxsystem 12
  • CompatibilitySuper G3
  • Original formatmax A3
  • Modem speed33.6 kbps
  • Transmission speed3 seconds or less using JBIG
  • Compression methodJBIG, MMR, MR, MH
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi), 600 x 600 dpi
  • Fax memory170 MB
  • Abbreviated dial2000 numbers
  • One touch dial1000 numbers
  • Group dial500 numbers
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission, max 2 fax kits for parallel transmission and reception

Options

  • Original feederDP-7150 document processor with automatic reverse function (A6R-A3, capacity: 140 sheet A4, paper weight 35- 160 g/m²), DP-7140 document processor with automatic reverse function (A5R-A3, capacity: 50 sheet A4, paper weight 45-160 g/m²), DP-7160 document processor with simultaneous duplex scanning (A6R-A4, capacity: 320 sheet A4, paper weight 35-220 g/m²), DP-7170 document processor with simultaneous duplex scanning and multi-feed detection (A6R-A3, capacity: 320 sheet A4, paper weight 35-220 g/m²)
  • Original platen coverPlaten cover type E (if document processor is not installed)
  • FinisherDF-7100 internal finisher (capacity: 500 sheet A4, stapling max 50 sheet A4), DF-7120 (capacity: 1,000 sheet A4, stapling max 50 sheet A4),, PH-7120 hole punch unit for DF-7100, PH-7C hole punch unit for DF-7120/7140, BF-730 brochure module for DF-7140 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max X sheet A4), DF-7140 (capacity: 4,000 sheet A4, stapling max 65 sheet A4), MT- 730 (B) Multi Tray für DF-7140, IS-7100 Inserter for DF-7140/7150 (2 x 250 sheets paper feed A6R - SRA3), ZF-7100 Z-fold unit for DF-7140/7150 (Z-fold, engineering fold, tri-folding, saddle stich)
  • Job SeparatorJS-7100 (100 sheet, 52-300 g/m², A6R - SRA3), JS-7110 inner shift tray (250 sheet, 52-300 g/m², A6R - SRA3)
  • Paper feedPF-7140 (2 x 500 sheet universal cassettes [A5R-SRA3]), PF-7150 (2 x 1,500 sheet large capacity cassette [A4]), PF-7120 (3,000 sheet large capacity tray [A4], side deck)
  • Other optionsScan extension kit (A), Internet fax kit (A), Card authentication kit (B), Keyboard holder 10, Banner guide 10, UG-33 ThinPrint® kit, UG-34 Emulation option kit, IB-50 Gigabit Ethernet card, IB-51 WLAN card (IEEE802.11/b/g/n), IB-37 WLAN card (IEEE802.11a/b/g/n/ac), NK-7120 Numeric Keyboard (10 keys), DT-730(B) Document tray, cabinet no. 81, HD-15 (320 GB HDD), HD-16 (1 TB HDD)

Notes on technical data

  1. depending on the operating status↩
  2. depending on the operating status↩
  3. depending on the operating status↩
  4. depending on the operating status↩
  5. depending on the operating status↩
  6. for copy, print, scan, fax↩
  7. optional↩
