General
- TypeConsole Unit
- FunctionCopy, print, scan, optional: fax
- Print technologyLaser b/w
- Original formatmax A3 from platen glass
- Original feederDual scanner with ultrasonic sensor for multi-feed detection (A6R-A3, capacity: 270 sheet A4, paper weight 35-220 g/m² [DIN A5R-DIN A3])
- Print speed (A4, Simplex) B/W80 b/w-pages/min.
- Print speed (A3, Simplex) B/W40 b/w-pages/min.
- Copy speed (A4, Simplex) B/W80 b/w-pages/min.
- Copy speed (A3, Simplex) B/W40 b/w-pages/min.
- 1st page (printing, b/w)4.1 seconds
- 1st page (copying, b/w)3.7 seconds
- Warm-up time30 seconds
- Copy resolution600 x 600 dpi
- Greyscales256
- Paper feed (Universal cassettes amount)2 x 500 sheet universal cassettes
- Paper feed (1st cassette types)A5R-A3+ [max 305 x 457 mm]
- Paper feed (2nd cassette types)A5R-A3+ [max 305 x 457 mm]
- Paper feed (Multi-Bypass amount)1 x 500 sheet
- Paper feed (Multi-Bypass types)A6R-A3+, Banner [305 x 1,219 mm]
- Paper feed (Large Capacity Cassette amount)2 x 1,500 sheet
- Paper feed (Large Capacity Cassette 1 types)A4
- Paper feed (Large Capacity Cassette 1 types)A4
- Paper feed (print-only)A3+
- Paper weights (Universal cassette min)60 g/m²
- Paper weights (Universal cassette max)256 g/m²
- Paper weights (Multi-Bypass min)60 g/m²
- Paper weights (Multi-Bypass max)300 g/m²
- Paper weights (Duplex min)60 g/m²
- Paper weights (Duplex max)256 g/m²
- Paper output250 sheet A4 (lower tray), 100 sheet A4 (lower tray), with Copy tray type D
- System memory (RAM)4.5 GB
- System memory (SSD)8 GB
- System memory (HDD)320 GB
- Continuous copying (min)1
- Continuous copying (max)9999
- Zoom (min)25 %
- Zoom (max)400 %
- Zoom (step)1 %
- FunctionsAdjustable colour touch screen (10.1 inch), duplex, 1000 management codes, skip blank pages, trusted platform modul (TPM), secure boot and run time integrity check, etc.
Dimensions / Weight
- Dimensions (height)1234 mm
- Dimensions (width)750 mm
- Dimensions (depth)822 mm
- Weight150 kg
Environment
- Mains voltage220/240 V
- Utility frequency50/60 Hz
- Power consumption (max)2400 W
- Power consumption (busy)1170 W
- Power consumption (standby)110 W
- Power consumption (sleep)0.7 W
- Power consumption (TEC)1.44 kwh/week
- SafetyGS/TÜV, CE
Printing system
- TypeIntegrated within the system
- Print formatA6R-A3+
- Print resolution (max)1,200 x 1,200 dpi
- ProcessorFreescale QorIQ T1024 (Dual Core) 1.4 GHz
- InterfacesUSB 2.0, 10/100/1000BaseTX, USB host, NFC
- Network protocolsTCP/IP, Net BEUI
- Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.9
- EmulationsPCL6, KPDL 3 (PostScript 3 compatible), XPS, PDF, PRESCRIBE Ile
- FunctionsUSB direct printing, PDF/XPS direct printing, Ipsec, SNMPv3, printing of e-mails, private printing, barcode printing, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print
Scanning system
- Scan typeCCD colour and b/w
- Scan formatmax A3
- Scan speed (Feeder 1, simplex, colour)120 DIN-A4-image pages/min. in 300 dpi
- Scan speed (Feeder 1, simplex, b/w)120 DIN-A4-image pages/min. in 300 dpi
- Scan speed (Feeder 1, duplex, colour)220 DIN-A4-image pages/min. in 300 dpi
- Scan speed (Feeder 1, duplex, b/w)220 DIN-A4-image pages/min. in 300 dpi
- Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
- Scan modePhoto, text, photo/text, optimised for OCR
- File typesTIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, XPS, OpenXPS
- Interfaces10/100/1000BaseTX
- Network protocolTCP/IP
- Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
- FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP
Fax system
- TypeFaxsystem 12
- CompatibilitySuper G3
- Original formatmax A3
- Modem speed33.6 kbps
- Transmission speed3 seconds or less using JBIG
- Compression methodJBIG, MMR, MR, MH
- Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi), 600 x 600 dpi
- Fax memory170 MB
- Abbreviated dial2000 numbers
- One touch dial1000 numbers
- Group dial500 numbers
- Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
- FunctionsNetwork fax driver, automatic redialling, delayed transmission, max 2 fax kits for parallel transmission and reception
Options

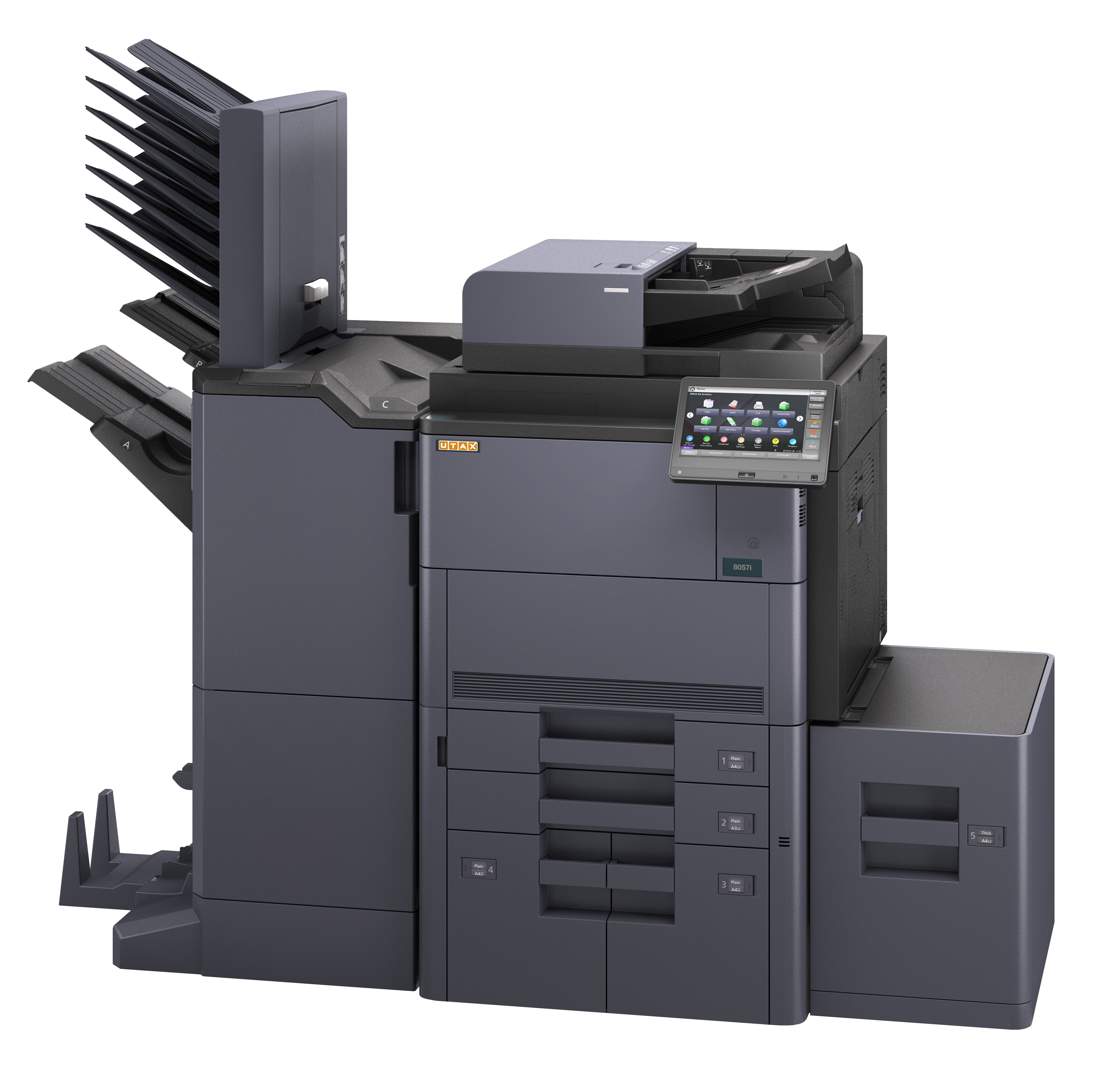

- FinisherDF-7110 (capacity: 4,000 sheet A4, stapling max 65 sheet A4), DF-7130 (capacity: 4,000 sheet A4, stapling max 100 sheet A4), PH-7C hole punch unit for DF-7110/7130, BF-730 brochure module for DF-7110 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max 5 sheet A4), BF-9100 brochure module for DF-7130 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max 5 sheet A4), MT- 730 (B) Multi Tray für DF-7110
- Paper feedPF-730 (B) (2 x 500 sheet universal cassettes [A5R-A3+]), PF-740 (B) (2 x 1,500 sheet large capacity cassette [A4]), PF-7130 (500 sheet multi-purpose cassette [A5R-A3+], required if PF-730 (B)/PF-740 (B) is installed), PF-7120 (3,000 sheet large capacity tray [A4], side deck)
- Other optionsInternet fax kit (A), Card authentication kit (B), Keyboard holder 10, Banner guide 10, UG-33 ThinPrint® kit, UG-34 Emulation option kit, IB-50 Gigabit Ethernet card, IB-51 WLAN card, IB-35 WLAN card, NK-7120 Numeric Keyboard (10 keys), Copy tray type D
